Focus on Conveyor Belt Custom Processing

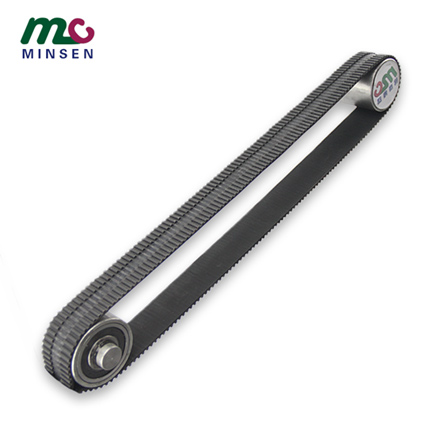

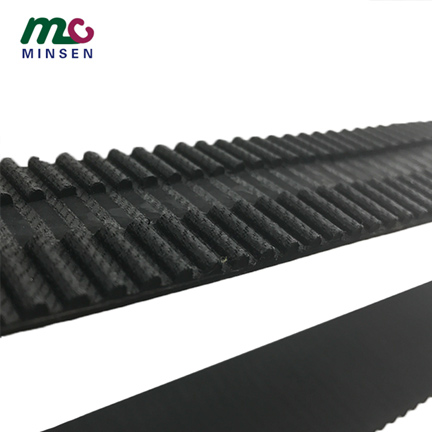

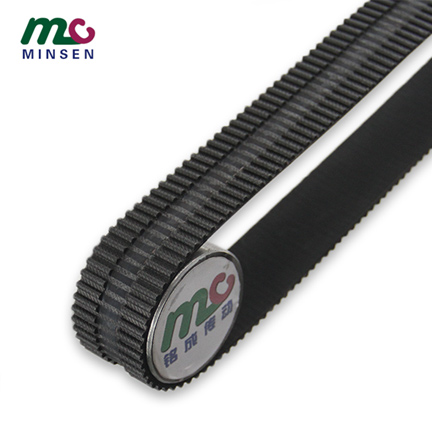

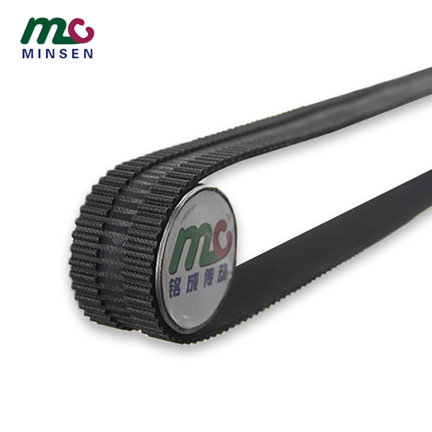

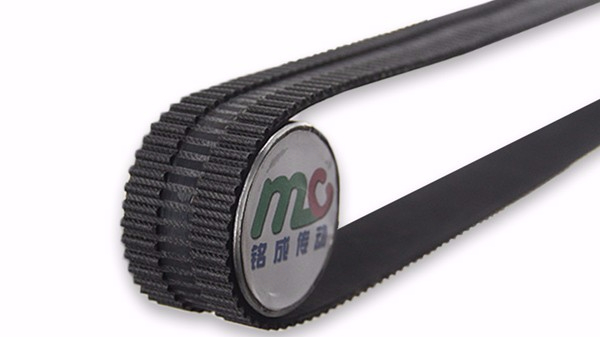

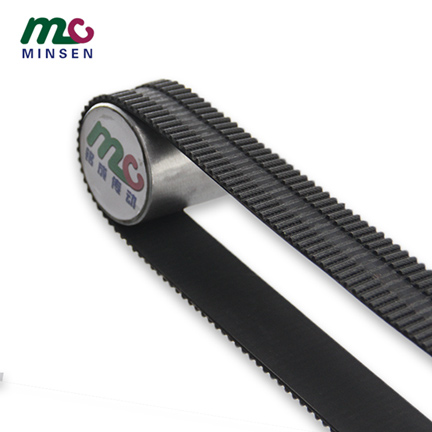

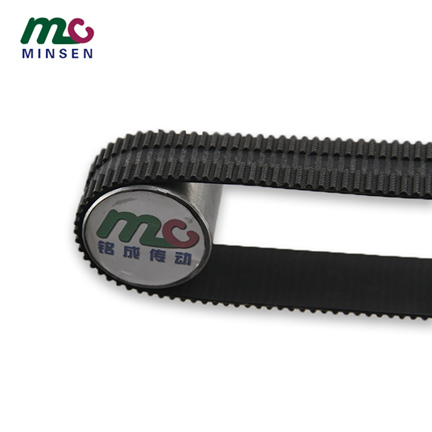

Rubber positioning belt uses imported chloroprene as the main rawmaterial, with various auxiliary materials for different purposes; skeletonmaterial is imported high-quality glass fiber rope; the surface of belt teethis protected by nylon 66 high elastic cloth.
raw material
Rubber positioning belt uses imported chloroprene as the main raw material, with various auxiliary materials for different purposes; skeleton material is imported high-quality glass fiber rope; the surface of belt teeth is protected by nylon 66 high elastic cloth.
performance
It has good dynamic flexibility, crack resistance, ozone resistance, aging resistance, heat resistance, oil resistance, wear resistance and other characteristics. Chloroprene rubber synchronous belt is widely used in textile, automobile, chemical fiber, cigarette, paper making, printing, chemical machinery and equipment. In recent years, the demand of mining metallurgy, steel machinery and medical equipment is increasing.
Common specifications
1 ladder teeth: MXL, XL, L, H, XH, XXH
2 Double-sided ladder teeth: DXL, DL, DH
3 Semi-circular Arc Teeth: HTS (HTD) Type
A) 3M, 5M, 8M, 14M, 20M
B) Double-sided teeth: D3M, D5M, D8M, D14M
4 wedge teeth: STS
A)
S2M, S3M, S4.5M, S5M, S8M, S14M
B) Double-sided teeth: DS4.5M, DS8M, DS14M
5 Tooth Peak Concave: RPP (Low Noise, Replaceable HTD)
A) P3M, P5M, P8M, P14M
B) Double-sided teeth: DP5M, DP8M, DP14M
