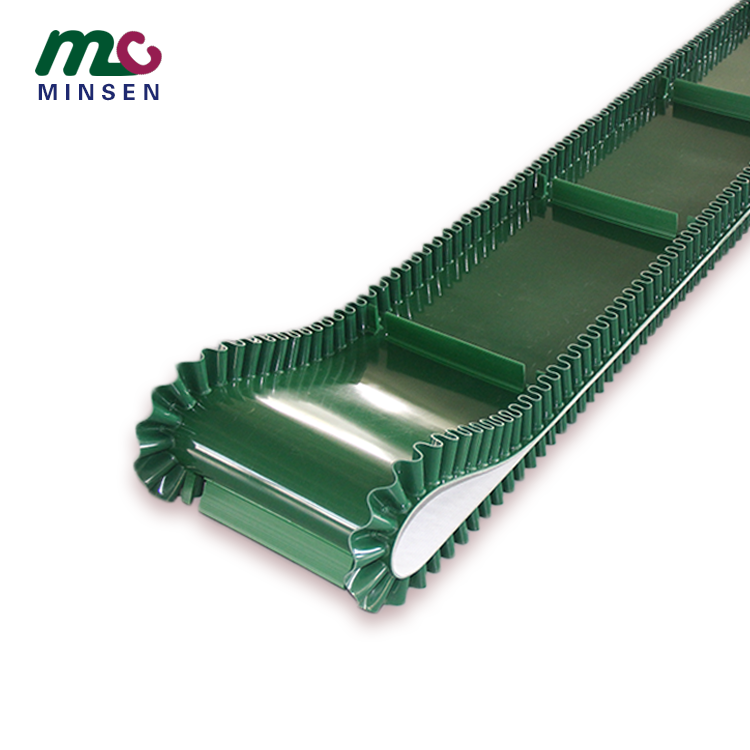

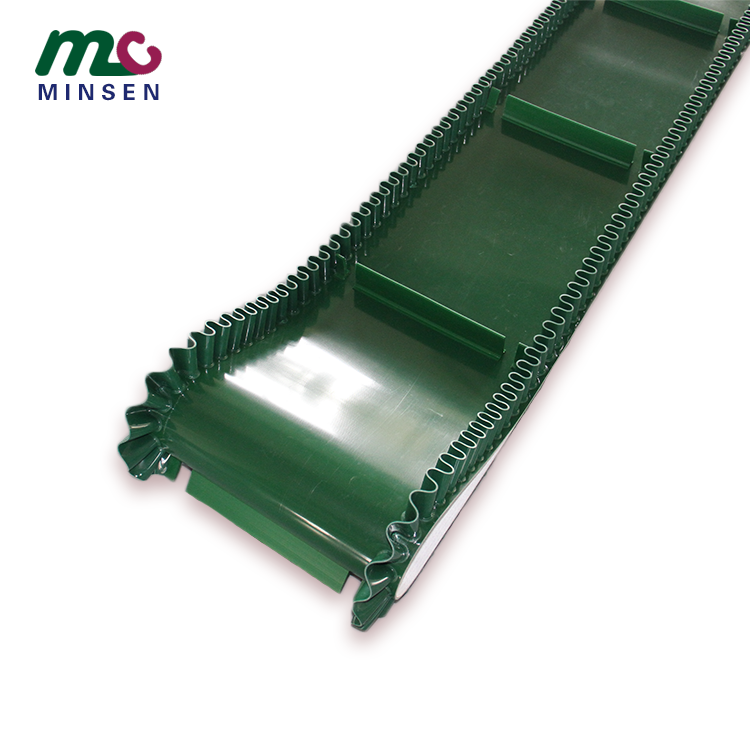

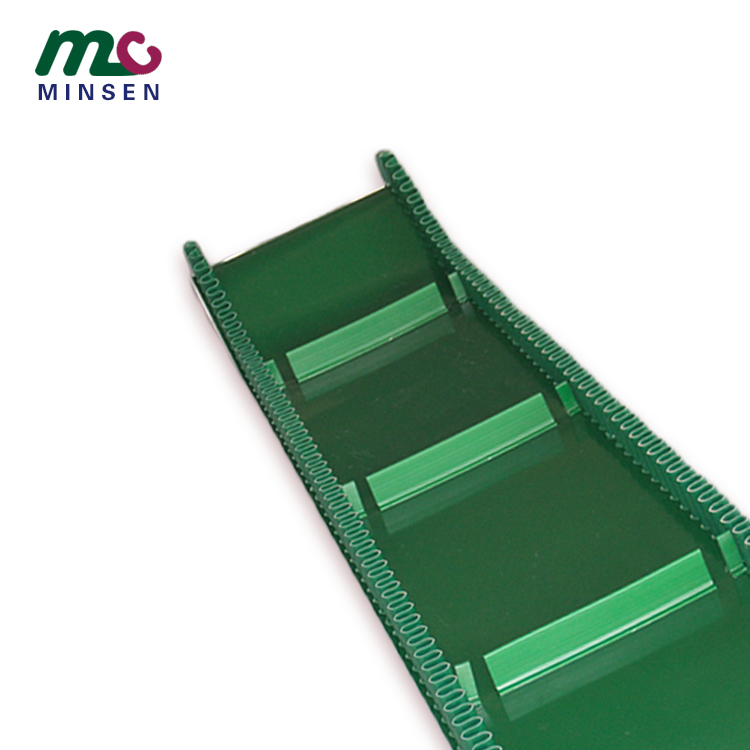

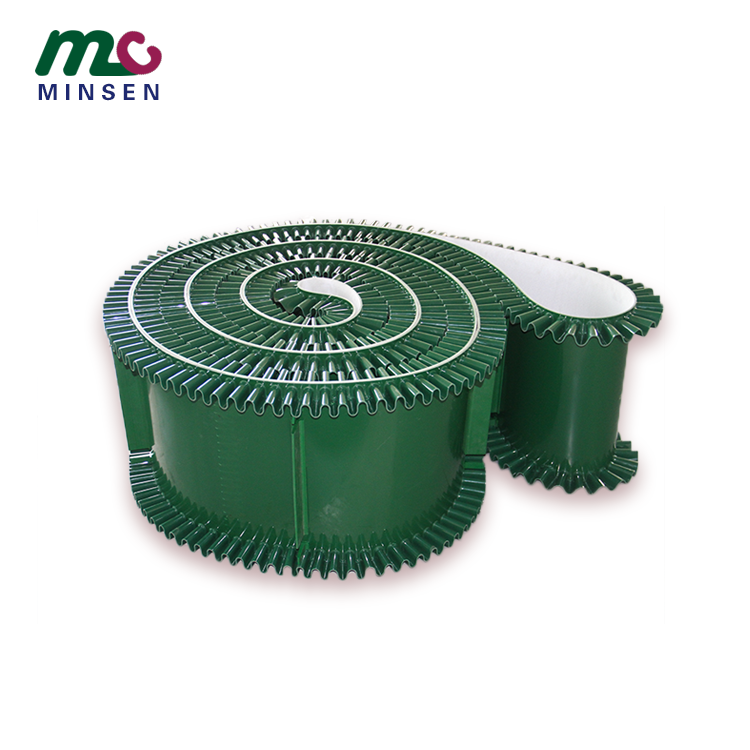

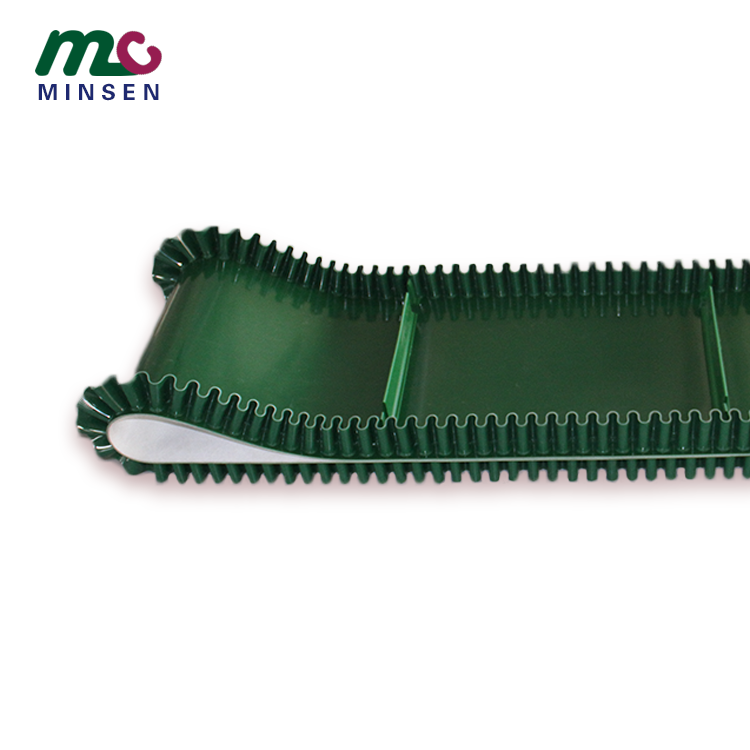

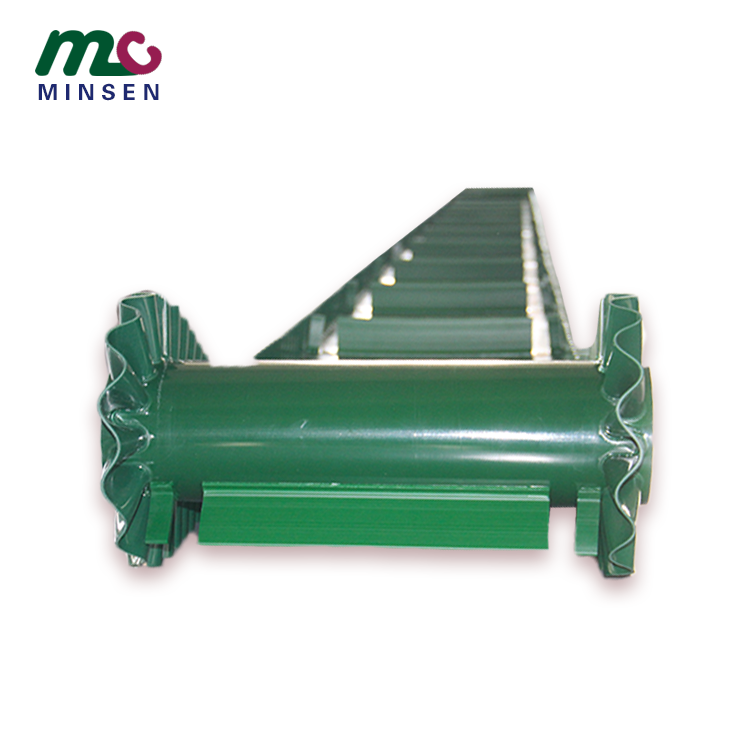

PVC skirt baffle conveyor belt

PVC skirt baffle conveyor belt

      The baffle conveyor belt has many functions such as horizontal conveying, inclined conveying, vertical conveying, quantitative packaging conveying, etc. It is mainly used for conveying bulk materials, including coal, ore, sand, fertilizer, grain, food,etc. The conveying particles can be from powder to 400mm.

inquiry
  • Product Details

      Skirt conveyor belt can be divided into two types: skirt-side conveyor belt without partition and skirt-side conveyor belt with partition. It can make all kinds of bulk materials to be continuously transported at any inclination angle of 0-90 degrees. It has the advantages of large inclination angle, wide application range and small occupation area. No transshipment point, reduce investment in civil engineering, low maintenance costs, large transport capacity and other characteristics, solve the common conveyor belt or pattern conveyor belt can not reach the transmission angle.


      The corrugated conveyor belt can be designed as a complete conveying system according to the requirements, avoiding the lifting system of discontinuous conveying and complex conveying.
      The corrugated conveyor belt can convey all kinds of bulk materials along the horizontal, inclined, vertical and angular directions, from coal, ore, sand to fertilizer and grain, etc.

Characteristics of baffle conveyor belt:

      1. Increase the conveying angle of the baffle conveyor belt (30-90 degrees);

      2. The baffle conveyor belt covers a small area and has less investment.

      3. The baffle conveyor belt has large conveying capacity and higher lifting height.

      4. The baffle conveyor belt can transit smoothly from horizontal to inclined (or vertical).

      5. Baffle conveyor belt is suitable for conveying powder, granular, small block, paste and liquid materials which are easy to scatter.

      6. The baffle conveyor belt has the advantages of low energy consumption, simple structure, high belt strength and long service life.

Product display

Food grade PU baffle conveyor belt

PVC skirt baffle conveyor belt

Food grade PU baffle conveyor belt

PVC skirt baffle conveyor belt

Food grade PU baffle conveyor belt

PVC skirt baffle conveyor belt

Food grade PU baffle conveyor belt

PVC skirt baffle conveyor belt

Food grade PU baffle conveyor belt

PVC skirt baffle conveyor belt

Food grade PU baffle conveyor belt

PVC skirt baffle conveyor belt
